FEATURES
- Rugged, reliable, hard wired remote fuel gauge will give years of trouble free service
- Five LED indicator lights inform you of the fuel level
- All systems include an industrial quality brass probe, an attractive LED indicator panel, and a plug in power supply. The probe or sending unit mounts in the oil tank and provides a direct contact with the oil level. The indicator panel displays the amount of product in the tank. The system is powered up by the plug in transformer and can be spliced in anywhere in between the probe and panel. (Optional Integrated Tank Heaters* available too). As easy to install as a doorbell!
- ABOVE GROUND TANKS*
- 275-330 Gallon Vertical Tank (part #80001)
- 275-330 Gallon Horizontal Tank (part # 80012)
- 500-1000 Gallon Above Ground or Vault (part # 80015)
- UNDER GROUND TANKS
- 500-1000 Gallon Under Ground, installs in straight vent pipe w/o whistler or in straight fill line (part #80005)
- Series 80000 models can also monitor diesel fuel, kerosene, waste oil, water, and LPG.
Above ground tank sending unit
Underground tank sending unit
- *Optional Integrated Tank Heater Available
The Optional Integrated Tank Heater is a 7 Watt 24 BTU warming element which is installed in the bottom of the sensor stem. The heater radiates heat whenever the air temperature in the tank falls below 40F degrees. Will retard or diminish the thickening or gelling of #2 fuel oil in cold temperatures.
Integrated heater available for tanks of 500 gallons or less. For tanks over 500 gallons use the separate National Magnetics Tank Heater

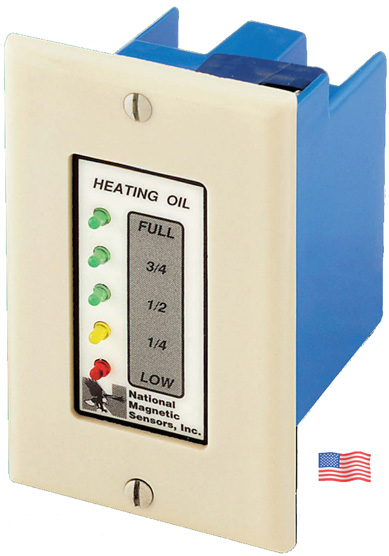

Veiw of gauge with installation kit

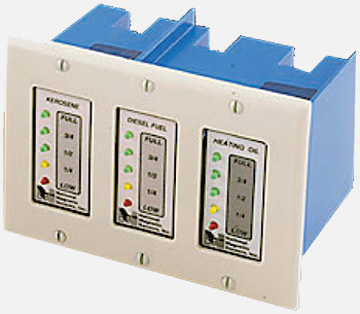

Multiple receivers can be installed for multiple tank applications
______________________________
What's Provided:
- LED Panel (Fits standard electrical wall box-not included)
- Wall Type Plug-In Power Supply (UL & CSA Approved) Supplies low voltage and limited current to the system.
- Brass Oil Tank Sensor with weatherproof cable assembly for indoor or outdoor mounting. Certain models designed for buried tanks have additional features as required.
What You'll Need to Complete an Installation:
- A Single Reducer Bushing (for above ground tanks only) 2 x 3/8" or whatever fits your tank opening. Not included in Installation Kit.
- Wall Box
- Wall Plate
- Hook up Wire
- Wire Nuts
-OR-
P/N 80013 Installation Kit fits all fuel oil systems (Comes with everything above except for the Reducer Bushing)
Click to see above ground tank installation instructions
